Transmitter : CD Display(Mono FSTN Graphic), Touch-sensor Keys with Hepatic

SOLT® SQ100 Transmitter — Guest Paging Console | 433 MHz FSK | 210×90×33 mm

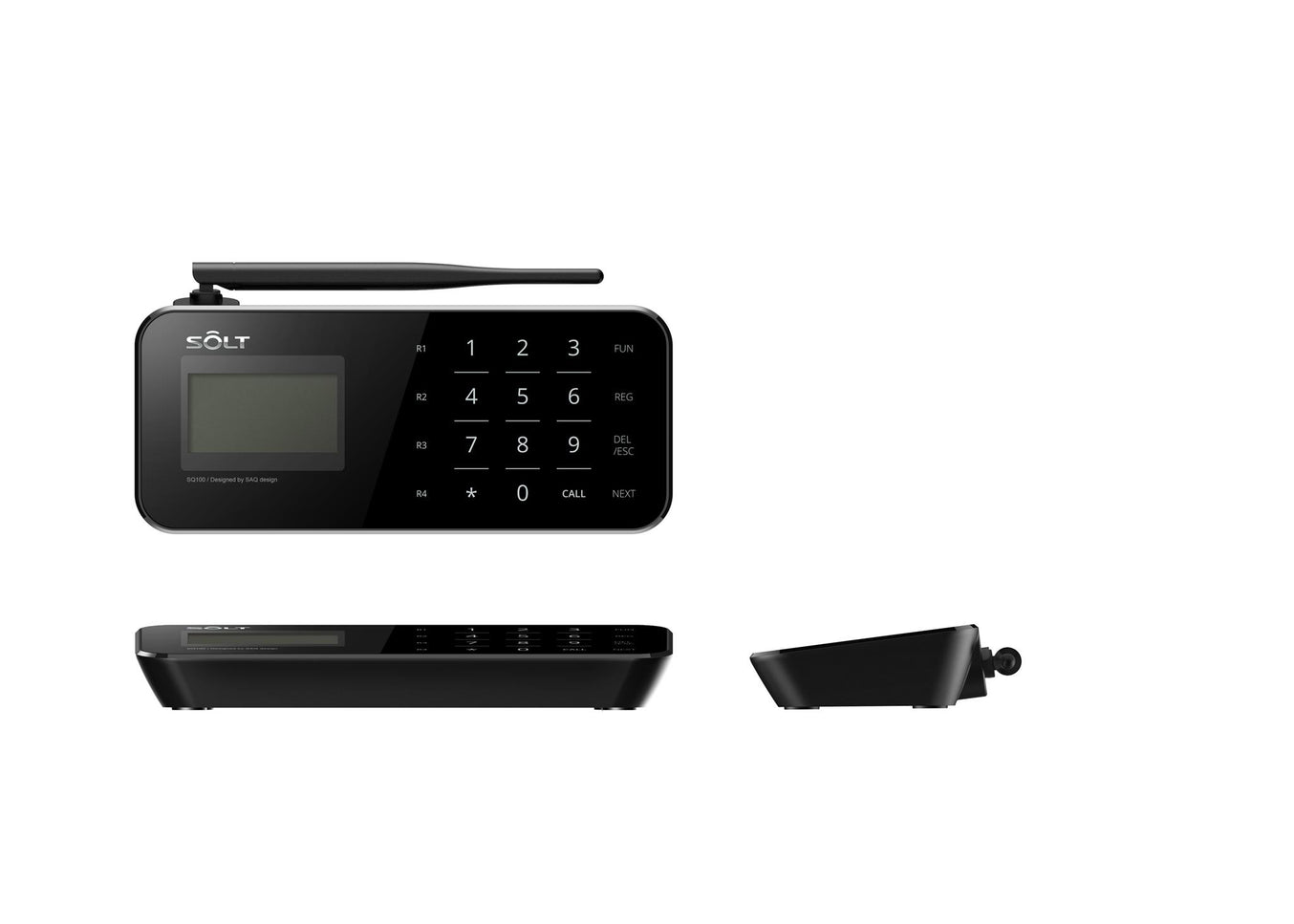

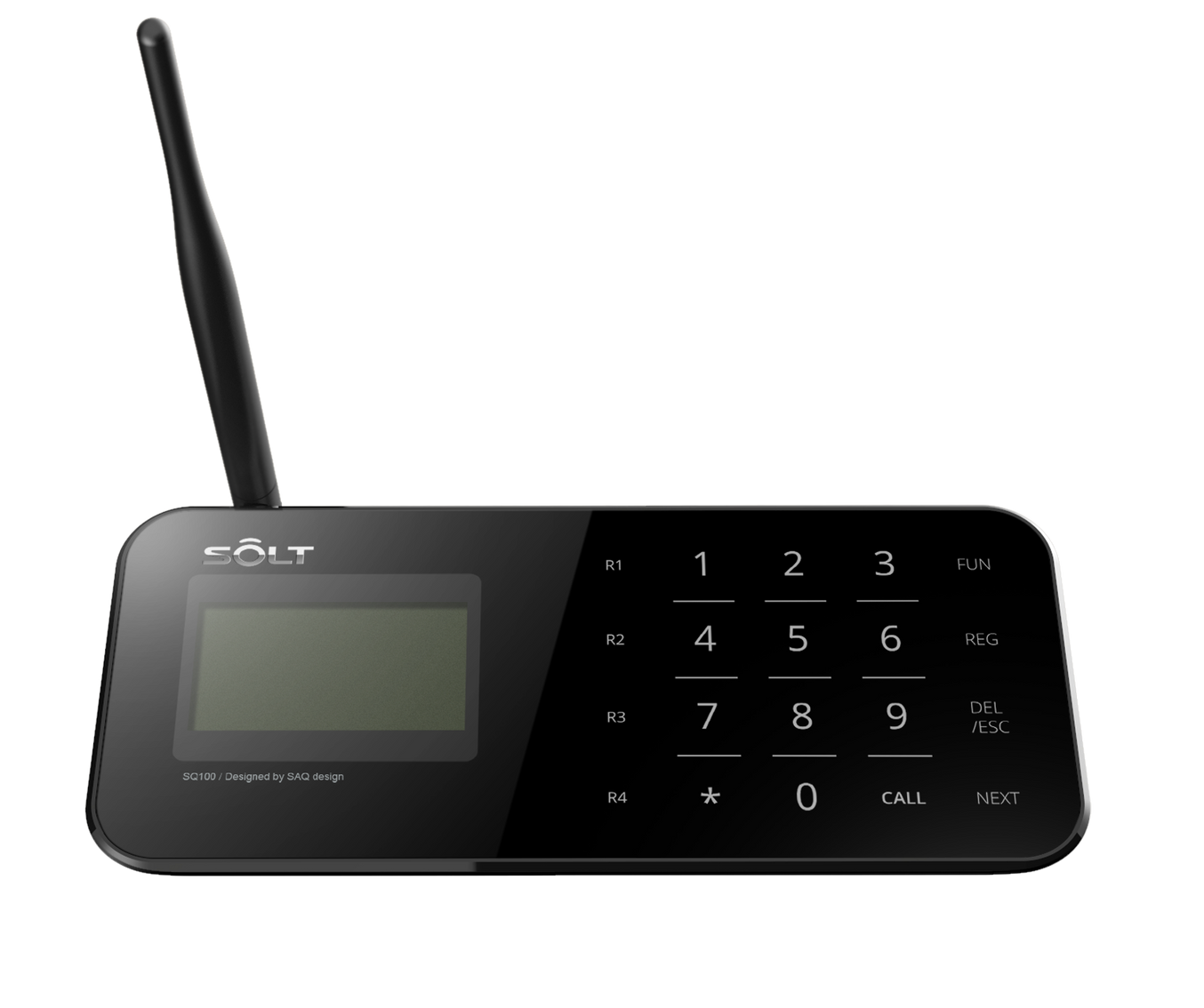

Streamline order handoffs and reduce queues with the SOLT SQ100 transmitter for guest-paging systems. The slim console features a touch, moisture-resistant panel and a mono FSTN graphic LCD for clear status feedback. It can be wall-mounted and runs on DC 12V/1A power while charging its built-in Li-polymer battery (also supports Micro-USB power). Typical working distance is ~150 m line-of-sight without a repeater—ideal for restaurants, cafés, food courts, hospitals, and service counters. :contentReference[oaicite:0]{index=0}

Key Features

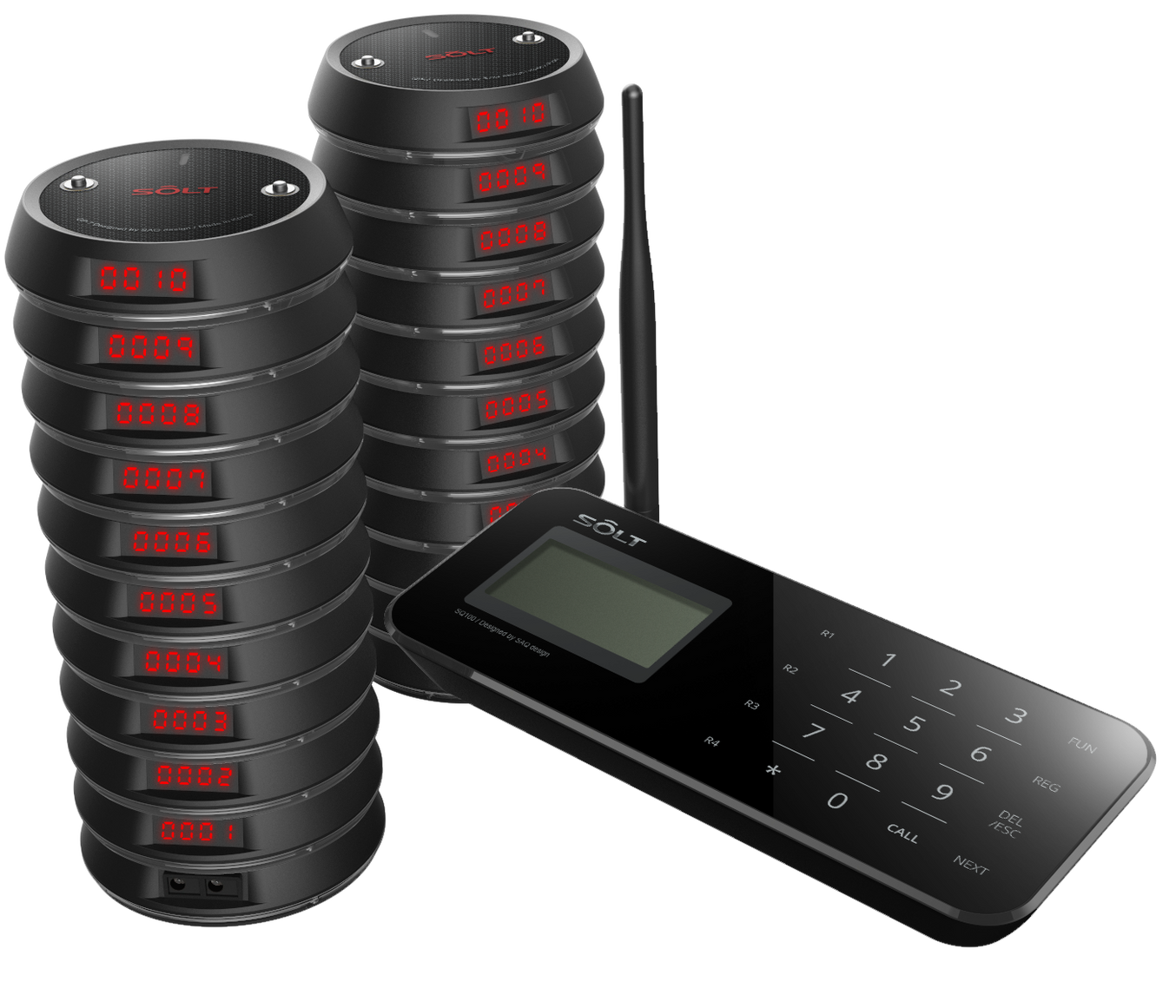

• Fast guest notifications: Call coaster pagers to collect orders and clear waiting areas. :contentReference[oaicite:1]{index=1}
• Touch, splash-resistant front: designed for busy counters and passes; simple wipe-clean surface. :contentReference[oaicite:2]{index=2}
• Flexible power: operates via DC 12V/1A adapter or Micro-USB while charging the internal battery. :contentReference[oaicite:3]{index=3}
• Stable RF: 433–434 MHz FSK (±3 kHz), 12.5 kHz channels, 1,200 bps, up to 10 mW output, built-in helical antenna. :contentReference[oaicite:4]{index=4}
• Interference control: supports TXID and frequency changes so adjacent venues can run side-by-side. :contentReference[oaicite:5]{index=5}
• ~150 m coverage: typical line-of-sight range without a repeater; extend further with SR5-BPR. :contentReference[oaicite:6]{index=6}
• Wall-mountable design: bracket available; console can sit on counter or mount on a wall. :contentReference[oaicite:7]{index=7}

Ideal For

• Restaurants & cafés — order-ready pickup paging
• Food courts & QSR — reduce counterside congestion
• Hospitals & clinics — waiting-room paging workflows
• Retail & offices — service counter notifications

What’s in the Box

• 1 × SOLT SQ100 Transmitter
• 1 × AC to DC 12V/1A power adapter
• Optional: Wall-mount bracket (regional bundle) and jump cable for charger extension
• Quick start / user guide

Technical Specifications

Care & Installation

• Place centrally at the counter or wall-mount for best coverage; avoid enclosing metal cabinets.
• Use only the supplied DC 12V/1A adapter or compatible Micro-USB power; keep cables away from heat and moisture.
• Wipe the touch panel with a soft, slightly damp cloth; avoid solvents and abrasive cleaners.
• For large venues, add the SOLT SR5-BPR repeater to extend range across zones.

Note: Specs and functions are based on the official SQ100 user manual and SOLT Europe listings. Range varies by layout and materials; accessories and wall-mount kits may differ by region. :contentReference[oaicite:8]{index=8}
