Signal Repeater : For extending call distance between bells and receivers (100m)

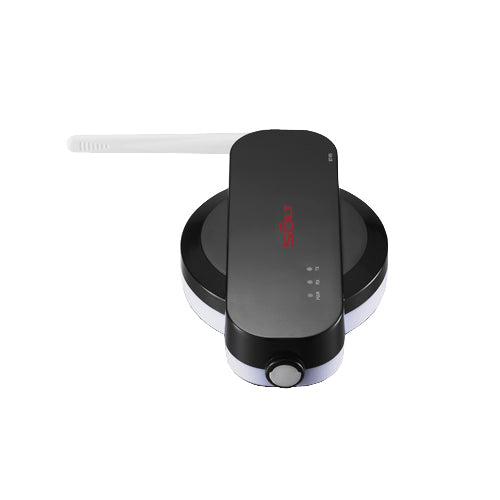

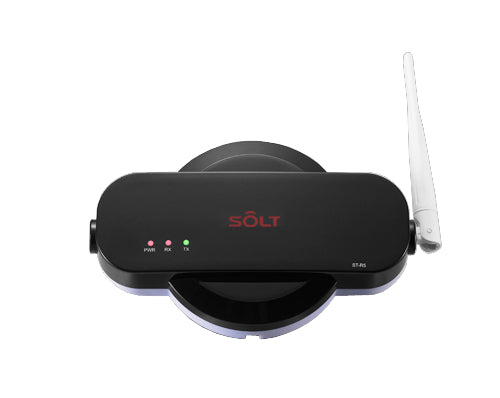

SOLT® SR5-BPR Signal Repeater — 433 MHz GFSK | DC12V | Per-Hop Extension up to ~100–150 m

Boost coverage and eliminate dead zones with the SOLT SR5-BPR RF repeater. Installed between your call buttons and receivers, it relays transmissions to extend range across dining rooms, kitchens, corridors, and multi-zone venues. The unit runs on a universal AC110–240V ? DC12V/1A adaptor and operates on 433 MHz (GFSK). Systems can deploy multiple repeaters without a fixed upper limit to cover large facilities. Typical working distance per hop is approximately 100–150 m line-of-sight. :contentReference[oaicite:0]{index=0}

Key Features

• Range extender: relays button transmissions to reach distant displays/pagers and bypass obstacles. :contentReference[oaicite:1]{index=1}
• 433 MHz GFSK: reliable low-power modulation for busy HoReCa and healthcare sites. :contentReference[oaicite:2]{index=2}
• Multi-repeater capable: no stated limit on the number of repeaters in one system for large-area coverage. :contentReference[oaicite:3]{index=3}
• Duplicate-block timer: configurable window prevents repeated relays from the same button (default ~3 s). :contentReference[oaicite:4]{index=4}
• Easy setup: on-device modes for frequency set, button ID registration, and duplicate-prevention time. :contentReference[oaicite:5]{index=5}

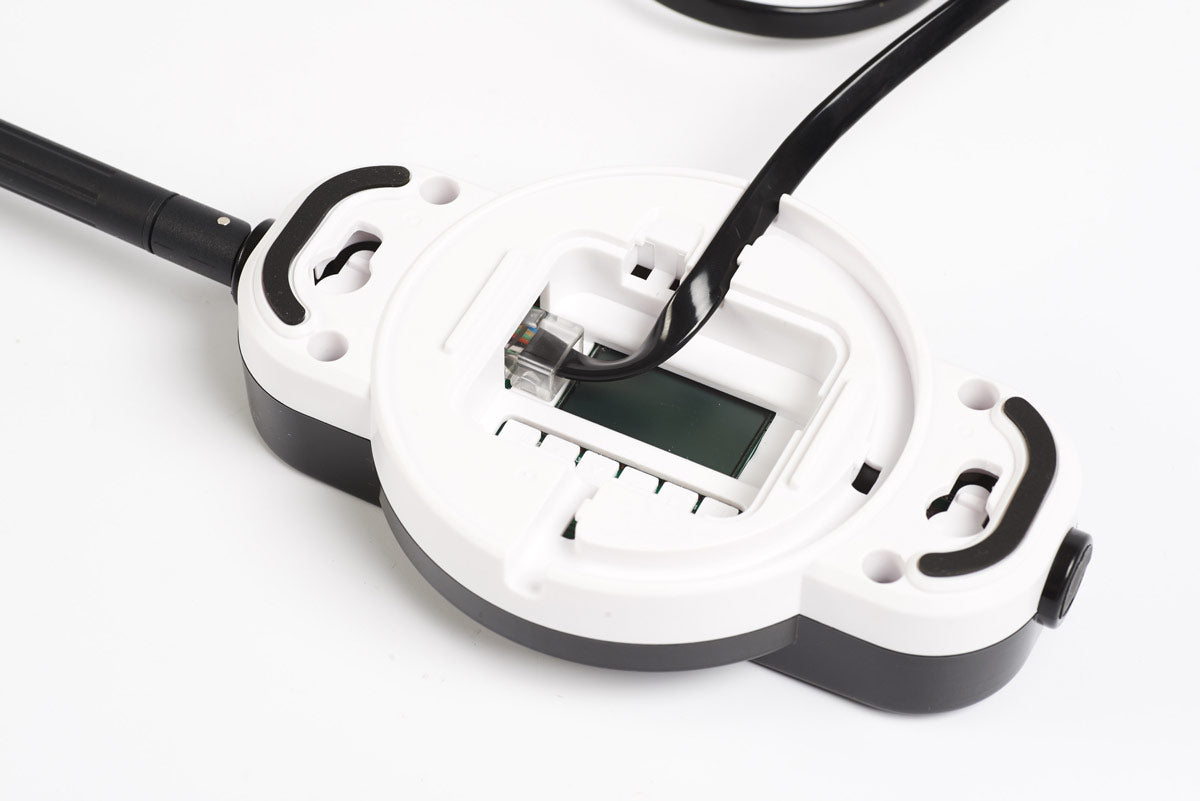

• Status display/indicators: rear LCD/LED indicators give at-a-glance setup and link status. :contentReference[oaicite:6]{index=6}
• Global power: works from AC110–240V using the included DC12V/1A adaptor. :contentReference[oaicite:7]{index=7}

Ideal For

• Restaurants & cafés — extend coverage from kitchen pass to far dining zones
• Hotels & banqueting — ballrooms, poolside, back-of-house corridors
• Hospitals & clinics — nurse stations across multi-wing floors
• Retail & offices — fitting rooms, service counters, storerooms

What’s in the Box

• 1 × SOLT SR5-BPR Signal Repeater
• 1 × AC110–240V to DC12V/1A power adaptor
• Basic mounting materials (varies by region)
• Quick start/user guide

Technical Specifications

Care & Installation

• Mount the repeater centrally between buttons and receivers for best coverage; avoid enclosing metal cabinets.
• Use only the supplied DC12V adaptor; route the cable away from heat, grease, and moisture.
• When deploying multiple repeaters, stagger placements to minimize RF overlap; set the duplicate-relay timer as needed.
• Wipe with a soft, dry cloth; avoid solvents and abrasive cleaners.

Note: Specifications and setup functions are based on the SOLT Europe product listing and the official SR5-BPR user manual/FAQ. Working distance varies by layout and materials; multiple repeaters can be used to cover large areas. :contentReference[oaicite:8]{index=8}
